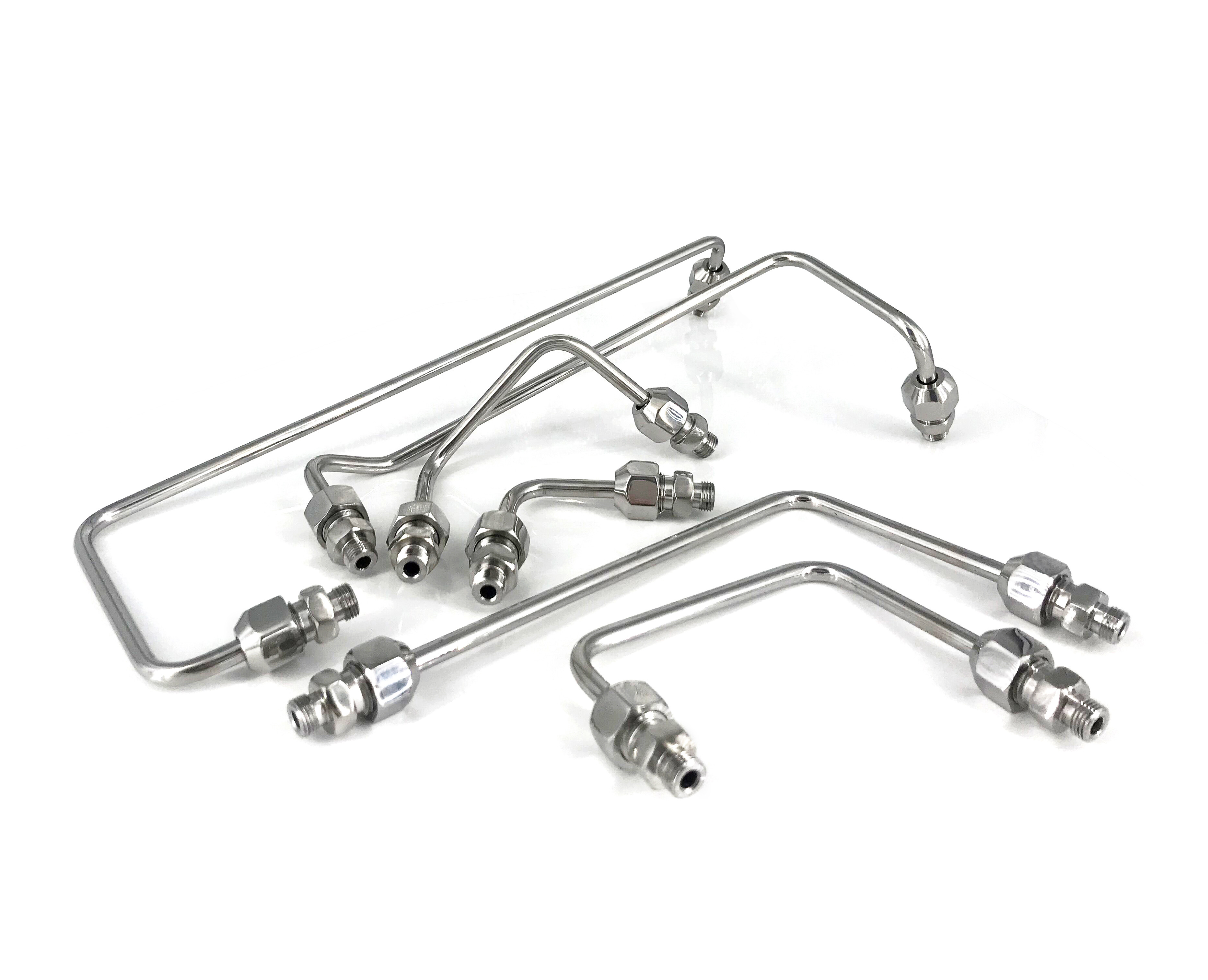

Stainless Steel 304 Connecting Pipes for Coffee Machine Parts
Customized SS Pipes of Coffee Machine for Food Machine
Stainless Steel 304/316 Investment Casting Parts Coffee Machine
Parts for Commercial Building
| Technology: | Lost Wax Casting,Investment Casting |
| Material: | Stainless Steel,304 316 2205 etc |
| Processing: | Casting+CNC machining+Surface treatment |
| Surface: | Polishing,Sand Blasting,Plating,Galvanized, Spray-Paint,etc |
| Origin: | Guangdong,China |
| Port: | Guangzhou |
| Samples: | 7-15 days |
| Delivery: | 30-35 days |
| Certificate: | ISO9001:2015 |
| Capacity: | 2500 tons/year |
| Size Capacity: | Thickness>6mm, Length<1000mm, Weight:0.1kg-100kg |
| Casting Tolerance: | GB CT4~CT6 |
| Surface Roughness: | Ra 0.4um-12.5um |
| Usage | Used in metallurgy, automobile, aero, chemical, ship hardware
,engineering industry, etc. |
Investment Casting Advantages
- Economic way to produce high definition, complex detail parts
- Reduced waste, labor time & machine time lowers cost
- Shorter labor time reduces lead times & costs
Main products
| Food machine parts |
| meat grinder parts |
| meat mincer parts |
| casting parts for mincer parts |
| spare parts for meat processing machine parts |
| coffee machine parts |
| meat grinder blade |
| commercial meat grinder parts |
| electric meat grinder parts |
| coffee roaster parts |
| Coffee machine accessories |
| meat grinder plates |
| enema parts |
| Juicing Machine parts |
Production Process
1.TOOL MAKING
A wax injection mold is designed and built to produce castings per
customer specifications.
2. WAX PRODUCTION
A wax pattern is produced from the wax injection mold.
3. PATTERN ASSEMBLY
Wax patterns are attached to gating system by hot knife.
4. SHELL MAKING
The pattern assembly is dipped into a ceramic slurry, coated with a
refractory material and dried. The process is repeated until the
desired thickness and strength is achieved.
5. DEWAXING
Using regulated steam pressure, an autoclave melts and remove the
wax from the ceramic shells.
6.SHELL PREHEAT
High temperature ovens cure and preheat the ceramic shells before
pouring.
7.CASTING
Pre-heated Ceramic cavities are poured with the molten metal.
8.KNOCK OUT
The ceramic shell is removed by vibration knocking and the cluster
is cleaned.
9.CUT OFF
Castings are cut off from the gating system.
10.MACHINING,SURFACE FINISH,AND INSPECTION
After cut off and gate removal, all secondary finishing operations
are performed. Each casting is inspected according to customer
specifications and requirements.
Equipments
We specialize in turning, drilling, tapping, and a variety of other
machining capabilities to offer a complete product.
With these in-house turning capabilities, we also can quote your bar stock
requirements, which complements
our investment casting line.
Why Choose Us
ABLinox wants to become a high-end customized expert in stainless steel
industry.
ABLinox have been cooperated with some TOP 500 enterprises in the world.
ABLinox can be your one-stop-shop and has in-house machining capabilities
as well as outside machining services available for specialized
machining.
ABLinox own casting foundry,mold center,CNC machining center,polishing
workshop in one location.
Quality Control
1. Inspection of work-in -progress
2. Finished product inspection
3. Random warehouse inspections
4. All of our operations are strictly compliant with ISO 9001:2008
guidelines
We own automated casting lines CNC machining ,CMM inspection,
spectrometers and MT testing equipment,
X-ray.
